Adeunis mobile Field Test Device LoRaWAN
€249.90*
In stock, delivery time: 3-5 days
Adeunis mobile Field Test Device LoRaWAN
LoRaWAN field tester for real-time network analysis and signal strength testing. It allows the transmission, reception and immediate display of LoRaWAN messages and their quality/field strength in the network used.
Use Cases:
- Coverage and range tests with geolocation of the measuring points
- Optimization of sensor locations / positions for assembly planning
- Selection of the most suitable network
| Usage: | Asset Tracking, Location detection |
|---|---|
| industry: | Agriculture & Agricultural Engineering, Buildings & Facilities, Construction, Public & Private Utilities, Smart City, Smart Factory & Industry 4.0, Smart Retail, Transport & Logistics |
| location: | Factory Buildings, Indoor, Outdoor, Room (Office/Living/Kitchen) |
| sensors: | GPS, Motion, Temperature |
- Data displayed: UL / DL – Channels – RSSI/SNR/PER – GPS – Temperature
- Self-powered (~10hrs) and rechargeable (Micro-USB)
- Dimensions: 180 x 72 x 21 mm
- Operating temperature range: -20 ° C to +75 ° C
- Standards: Directive 2014/53/EU (RED)
- Radiated RF power: 14 dBm
- Sensitivity: -140dBm LoRaWAN
The field tester is a ready-to-use handset that establishes the connection to any operated LoRaWAN network via the V1.0 protocol. It enables the transmission, reception and immediate display of the radio frames in the network used.

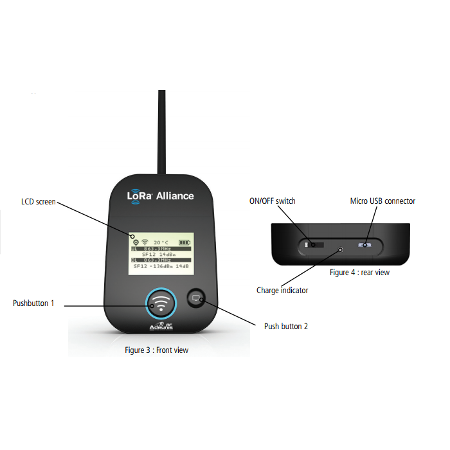

Field test device for public or private LoRaWAN network testing before the connected objects are used. Equipped with a large LCD screen you can call up various information about the functioning of the network used (uplink, downlink, SF, PER, etc.). In addition, further sensor data (GPS coordinates, temperature, battery level, etc.) are transmitted. Its ultra-fast and precise GPS optimizes geolocalization.
The field tester is particularly suitable for the validation of applications such as sensor networks, asset tracking, smart buildings, metering, security or M2M. Thanks to its rechargeable battery, the field tester allows several hours of operation time and can be charged with a standard mobile phone charger (micro-USB plug).
Adeunis is an IoT specialist headquartered in Crolles, Rhone-Alpes, France.
Founded in 1993, the company has between 51 and 100 employees and is listed on the stock exchange.
Adeunis offers sensors and solutions that make it possible to digitise devices and optimise their performance and use. By monitoring energy consumption and building conditions, its products help to increase comfort and efficiency.
Adeunis is particularly active in the smart building sector and offers a range of services to support the implementation of IoT projects. They are experts in LPWAN (Low Power Wide Area Network) technologies such as LoRaWAN, Sigfox, NB IoT, and LTE-M.
