Kerlink Wirnet iStation 4G IoT Outdoor Gateway 868 inclusive PoE Injector
€662.80*
Available in 22 days
Kerlink Wirnet iStation 4G IoT Outdoor Gateway 868 inclusive PoE Injector
Kerlink Wirnet iStation 4G IoT LoRaWAN® Outdoor Gateway 868 including PoE Injector
Kerlink Wirenet iStation is the next generation of gateways and with its 8 channel RX (125 kHz, multi Spreading Factor) + 1 channel RX (250KHz) or 500kHz, mono Spreading Factor) + 1 channel RX (FSK) for 10 channels RX + 1 channel TX it is more compact and powerful than its predecessor. Thanks to its long range, the Wirnet iStation enables a secure and robust connection between sensor and information system.
The Wirnet Station series enables a robust and reliable network implementation under LoRaWAN® for M2M & IoT connectivity service providers.
It forms the centrepiece of the IoT (Internet of Things) network solution and enables fast and secure data transmission between the connected object and the information system.
Attention: Not compatible with the Helium network!
Use Cases:
- Outdoor LoRaWAN Netzwerk Infrastructur
- PoE or external power supply for temporary site tests
| industry: | Agriculture & Agricultural Engineering, Buildings & Facilities, Construction, Public & Private Utilities, Smart City, Smart Factory & Industry 4.0, Smart Retail, Transport & Logistics |
|---|---|
| location: | Factory Buildings, Outdoor |
| protection classification: | IP67 |
- Ranges up to 15km
- Connection via LAN or GSM card (for fast network setup)
- 49 LoRa demodulators over 9 channels
- Open framework based on the standard Linux operating system
- ISM bands 868, 915, 923, 433 MHz
- Rugged housing IP67
- Operating temperature: -20°C to +60°C
- Integrated temperature and door opening sensor
- Size 315x170x215 mm (incl. mounting kit)
- RF power: 14 dBm
- Sensitivity: -141dBm

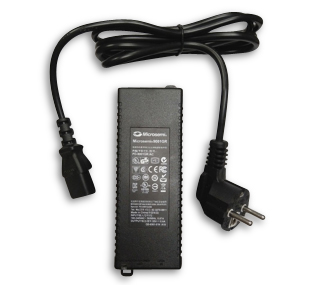

- PoE Injector included within the Bundle!
Further information:
The Wirnet Station series enables a robust and reliable network implementation under LoRa for M2M & IoT connectivity service providers who want to operate their network themselves.
They form the core of the IoT (Internet of Things) network solution and enable fast and secure data transmission between the connected object and the information system via Ethernet and 3G.
Thanks to a robust housing (IP 67), Wirnet 868 MHz is also suitable for harsh installation environments (humidity, dust, wind). Whether on the radio mast, on the roof of a building or a water tower, the Wirnet iStation can establish bidirectional communication with several thousand intelligent devices (sensors, meters, connected devices) many kilometers away.
Wirnet iStation is a powerful, reliable and easily integrated gateway for outdoor solutions. Thanks to a long range of up to 15 kilometers, the Wirnet iStation enables a secure and robust connection between sensor and information system.
| Manufacturer |
|
| Produkt |
|
| RF- Specifications |
|
| Certification |
|
| Software |
|
| Ports |
|
| Antenna |
|
| Mounting |
|
| Operating temperature |
|
| Size |
|
| Power |
|
| Use Cases |
|
communication is everything
Kerlink has developped a large range of products and services to meet each need of IoT LoRaWAN network deployment.
